Title Block
High-quality minimalistic AutoCAD title blocks for construction and architectural drawings.

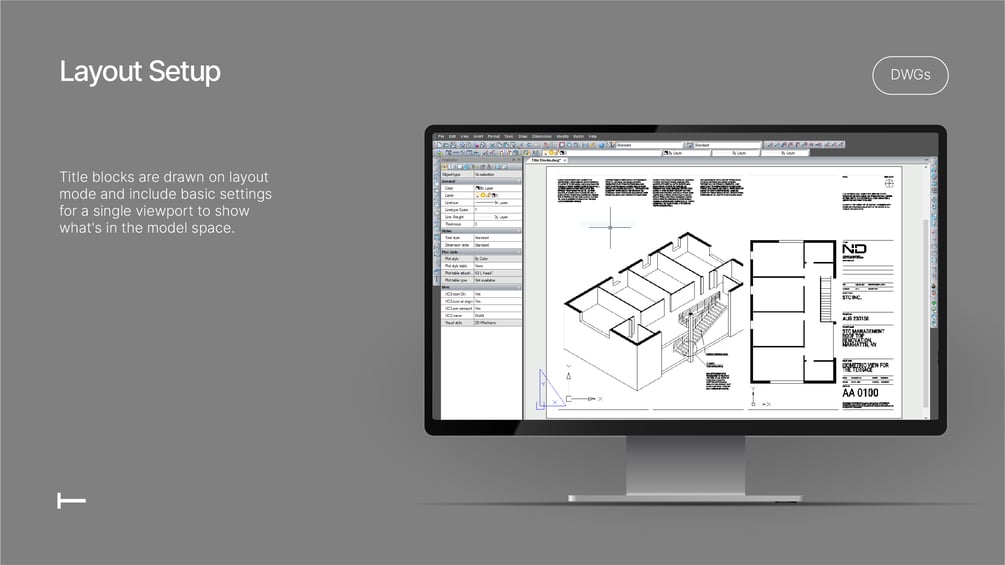

The title blocks are drawn on layout mode and include basic settings for a single viewport to show what's in the model space. The following sizes are available in this product. Also available in AI format for presentations using Adobe products.

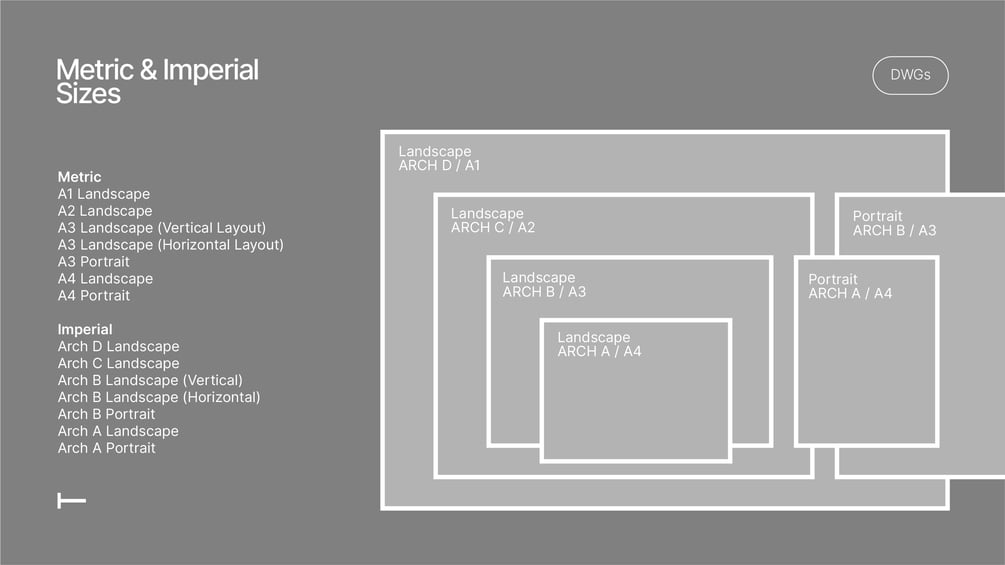

Imperial:
- Vertical Title Block: ARCH B, C, D (Cover, Sheet)
- Horizontal Title Block: ARCH A, B (Cover, Sheet)
Metric:
- Vertical Title Block: A3, A2, A1 (Cover, Sheet)
- Horizontal Title Block: A4, A3 (Cover, Sheet)
Sheet Arrangements
Title blocks are already set up on Layout mode
Important Notes:
- This product uses the Roboto Condensed font family, <available for download here>, and it has to be installed on the desktop before using the title block.
- This product is designed for users with prior experience in using AutoCAD and layout sheets.
